MagAir Helmet Air System

Introducing the MagAir helmet forced-air system.

Designed to be affordable, these 3d printed adapters allow endurance racing teams to add forced air cooling to every driver’s helmet at an affordable price. The magnet retention system allows for rapid driver changes and quick egress.

The vehicle side components contain rare earth magnets. The magnets allow safe storage of the hose on the roof of most vehicles when not in use and during driver changes.

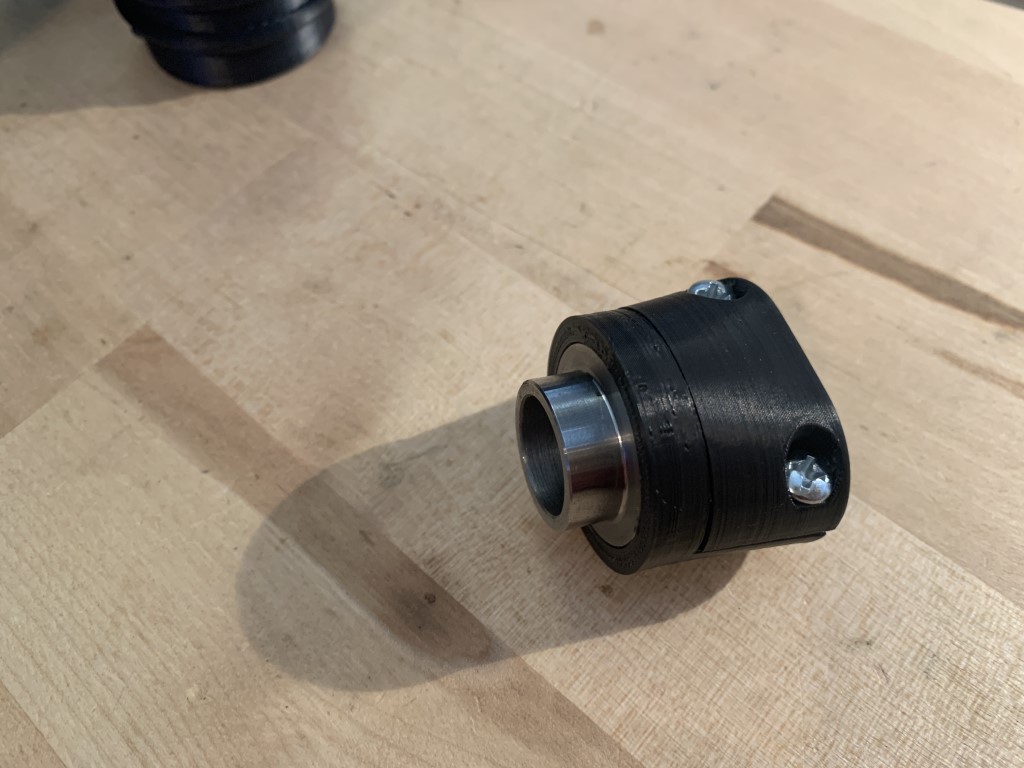

The helmet side components contain mild steel bushings with a retention flange, ensuring disconnects are intentional. Side loads will not affect magnetic retention strength.
Your expensive helmet air kit purchased from the helmet manufacturer will not be damaged. MagAir adapters attach via non-destructive and reversible methods.

Options:
Helmet Side:

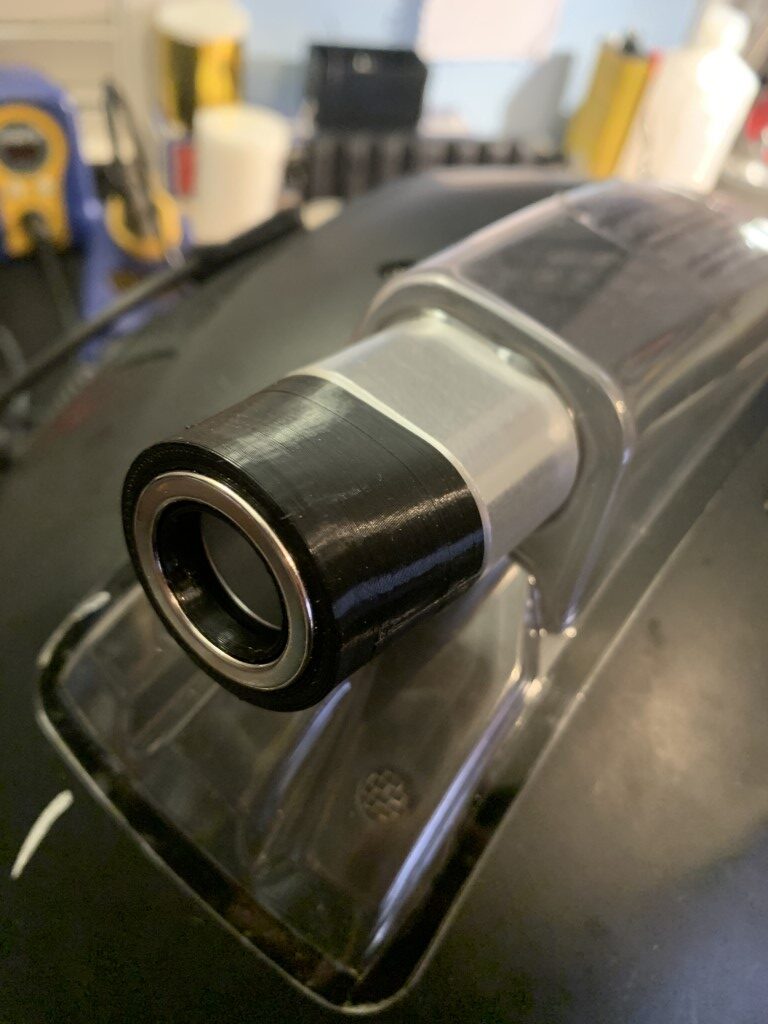

1. Stilo – This adapts from the Round ST5 helmet air kit to the MagAir system. Clamps onto the Helmet and is retained with two screws.
2. Roux – This adapts from Roux Helmets oval helmet air kit to the MagAir system. Attaches via Heat/Friction
3. Simpson – This adapts from Simpson Helmets round barbed air kit to the MagAir system. Requires drilling the factory rivet.

Vehicle Side

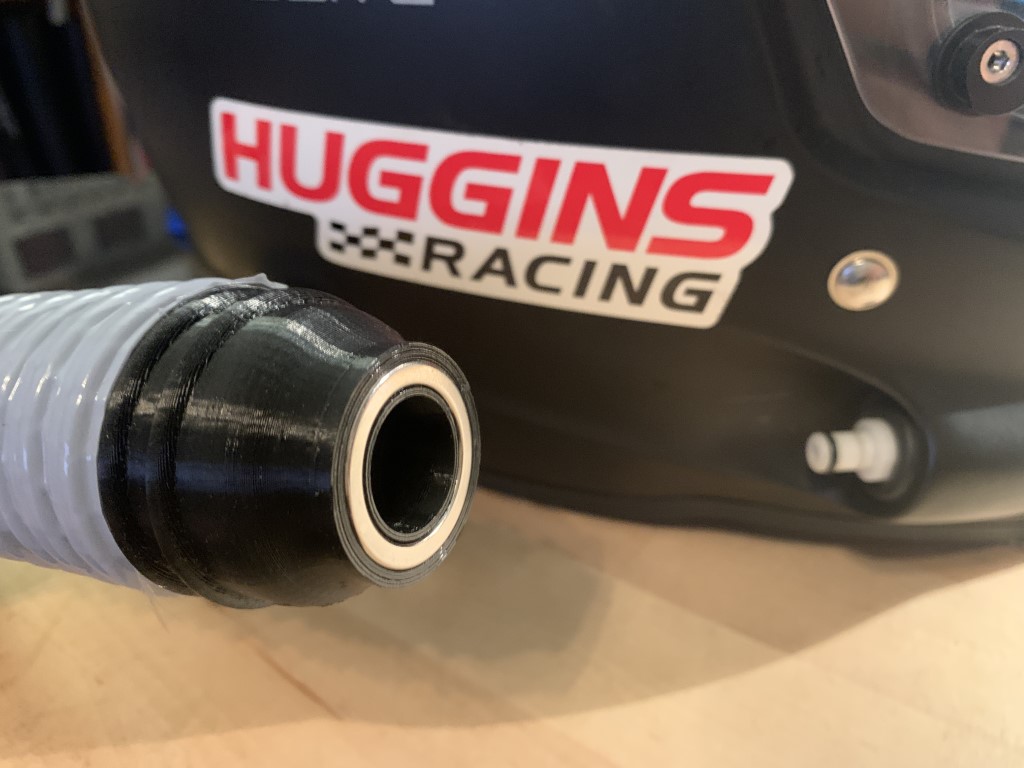

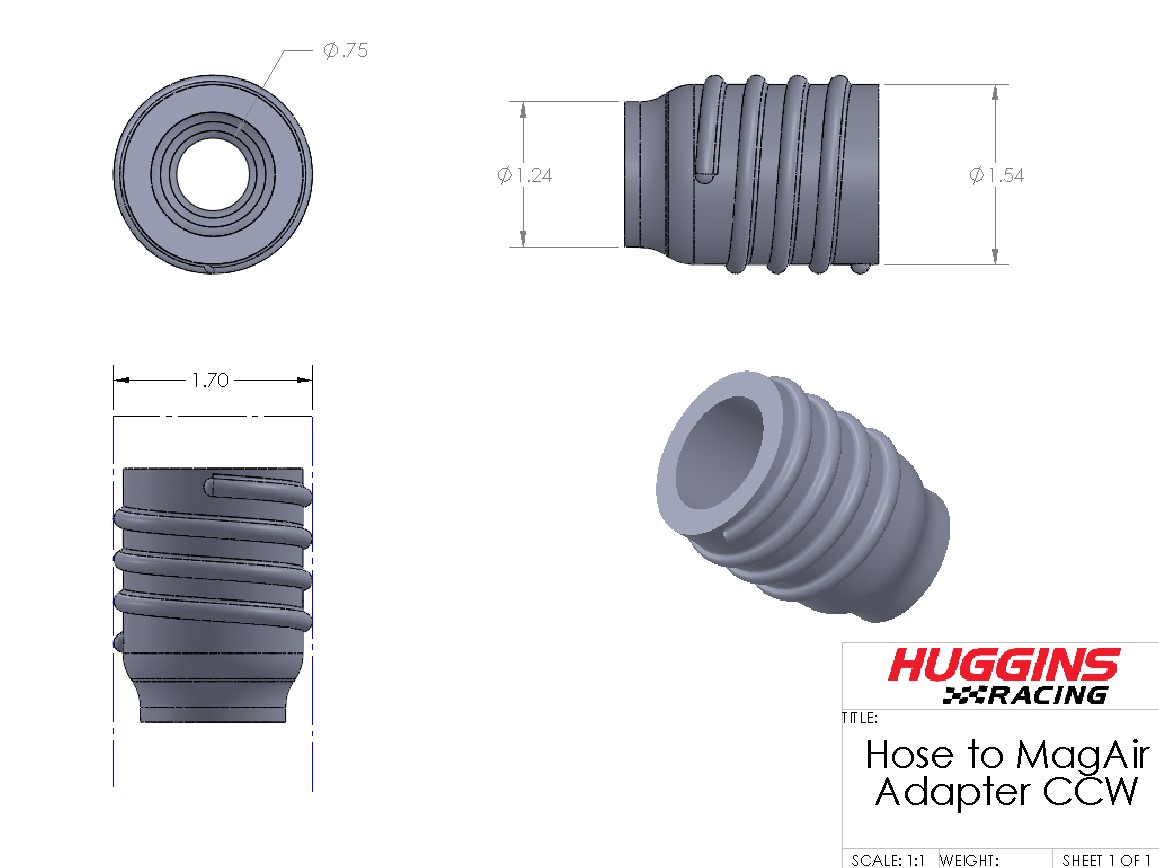

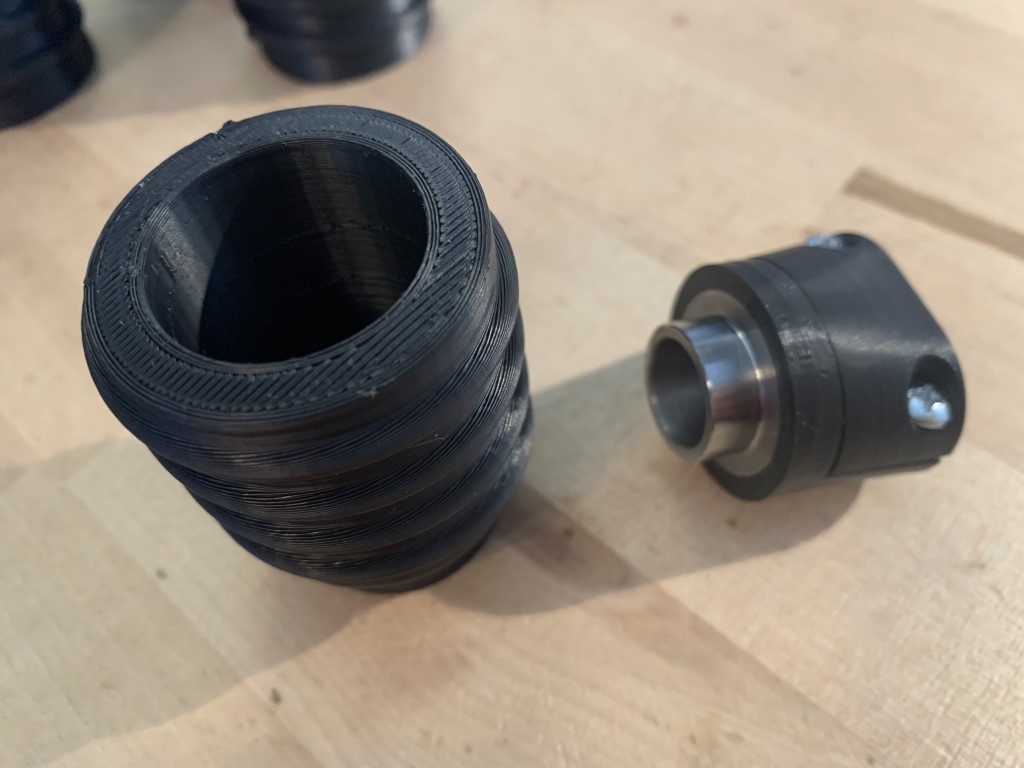

4. 1.5″ CCW Hose – Adapts from MagAir system to a 1.5″ Spiral Wound air hose. CCW is the most common winding direction. Left-Hand threads to tighten adapter into the hose.
5. 1.5″ CW Hose – Adapts from MagAir system to a 1.5″ Spiral Wound air hose. CW is offered for the rare hose wound in the Right-Hand thread direction.
6. 1″ Clamp Hose – Adapts from MagAir system to a 1″ bulb, allowing clamping of 1″ id hose to the adapter. Fits common Forced-Air system adapters.
